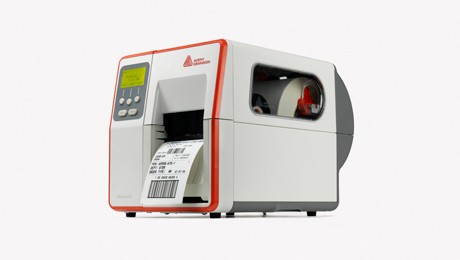

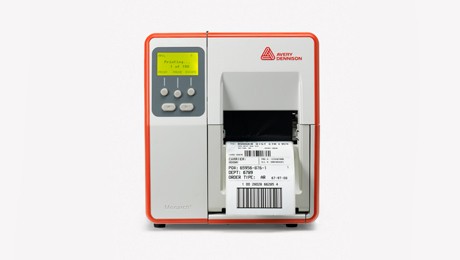

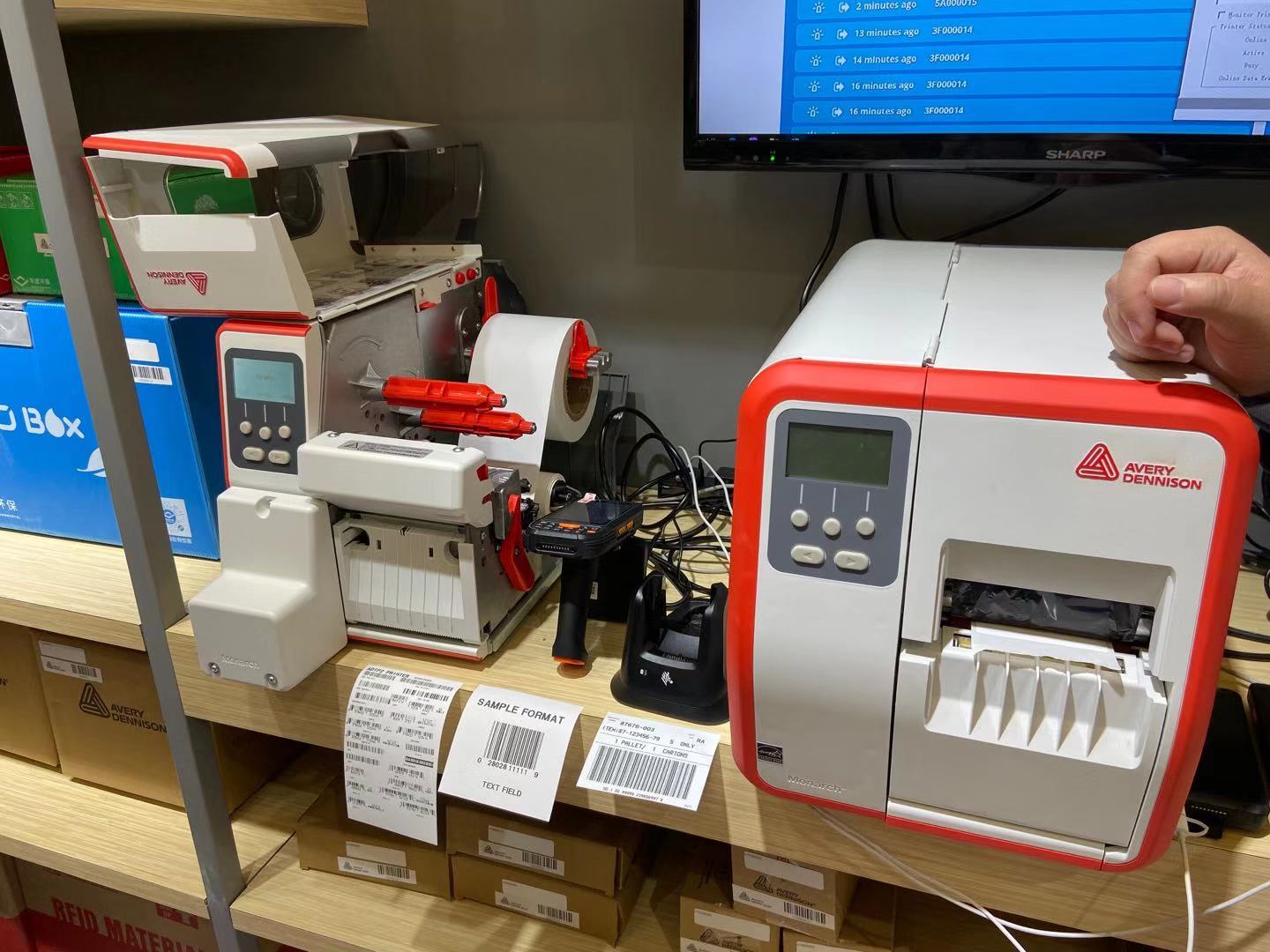

Avery Dennison® Monarch® Tabletop Printer 2 (ADTP™2)
Compact efficiency.
The ADTP2 is a high performance thermal printing and RFID encoding solution in a compact form factor, with the same rugged, reliable, field proven print mechanism as in our larger tabletop printers.
Use the ADTP2 for any printing application that requires high performance in a small space, including:

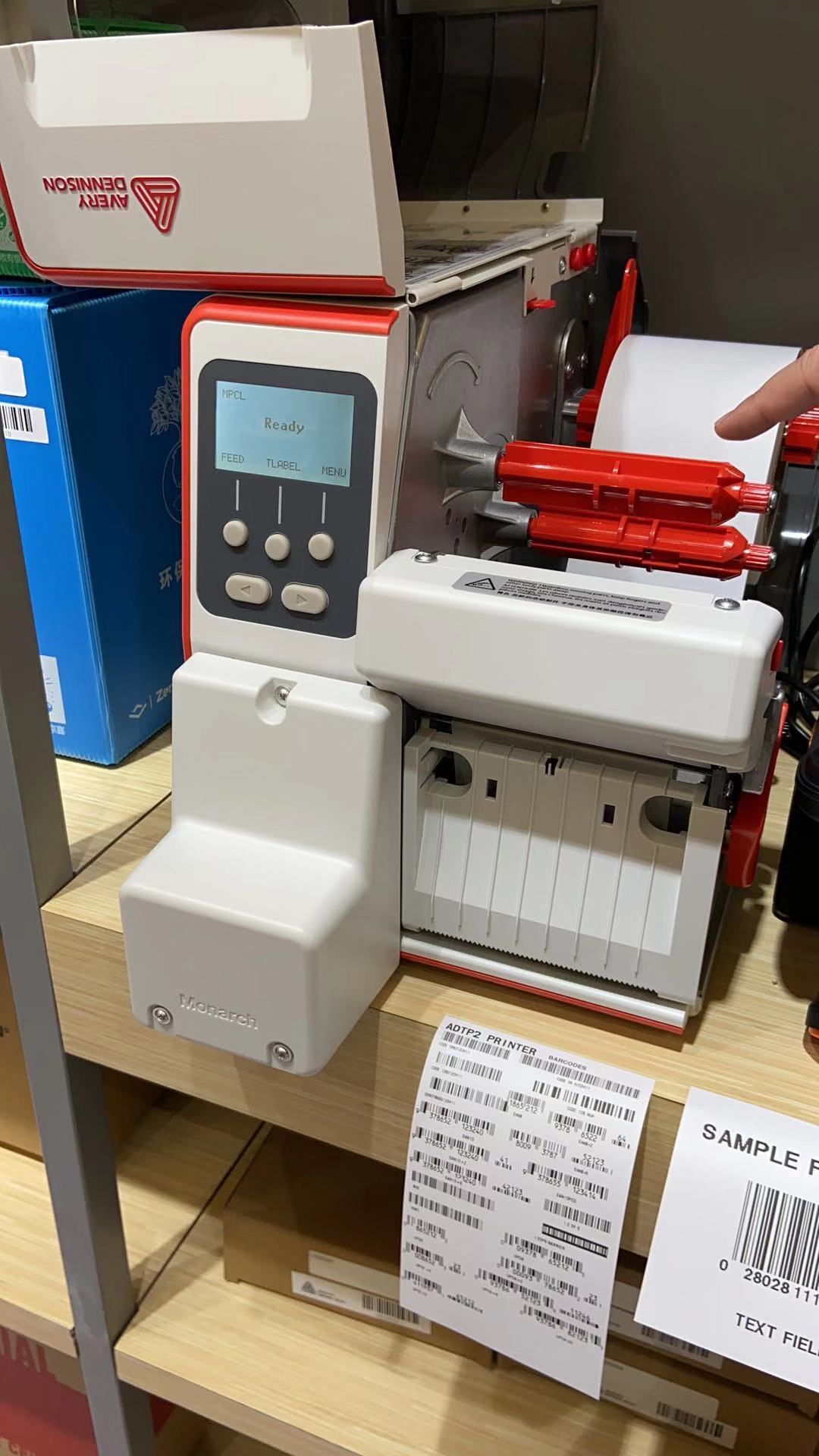

Avery Dennison® Monarch® ADTP™2 EcoCut Solution
One Printer, multiple length labels.
The ADTP™2 EcoCut Solution uses one continuous label roll in combination with a new, proprietary innovative printer cutting mechanism allowing the user to choose the exact length and quantity of labels they need, on demand. The solution offers flexibility to print in either peel & present mode or in batch mode:
Peel and present - the label is face cut and ready for application while the liner is rerolled
Batch mode - multiple label formats and sizes can be printed at once with the liner intact for label application now, or later
This solution results in:
Significant cost savings
Increased productivity
Improved sustainability
SPECIFICATIONS
The information contained herein is believed to be reliable but Avery Dennison makes no representations concerning the accuracy or correctness of the data. This product, like any
other should be tested by the customer/user thoroughly under end user conditions to ensure the product meets the particular requirements. Independent results may vary. Avery
Dennison and the logo are registered trademarks of Avery Dennison Corp. Third party trademarks and/or trade names used herein are the property of their respective owner(s).
©2017 Avery Dennison Corporation, All Rights Reserved.
AVERY DENNISON ® SERVICE AND SUPPORT
Our technical specialists and service representatives can provide installation support, training
and operating recommendations. For more information call 800.543.6650, option 7.
STANDARD FEATURES
DIMENSIONS
Height: 12.25" (311 mm)
Width: 11.0" (279 mm)
Depth: 17.2" (437 mm)
WEIGHT
25 lbs. (11.4kg)
SHIPPING WEIGHT
32 lbs. (14.5 kg)
PRINT PROPERTIES
PRINTING METHOD
Thermal Direct or Thermal Transfer
PRINTHEAD WIDTH
4.09" (102 mm/812 dots)
PRINTHEAD RESOLUTION
203 dpi (8 dots / mm) or 300 dpi (12 dots / mm)
MAXIMUM PRINT AREA
4.0" x 16.0" (102 mm x 406 mm) with the 203 dpi printhead.
4.0" x 13.0" (102 mm x 330 mm) with the 300 dpi printhead.
Larger images (up to 16 feet) can be printed using continuous
supply and reallocating memory.
PRINT SPEED
2.5 ips (64 mm/sec) - default for serial bar codes with narrow
elements less than 3 dots.
4 ips (102 mm/sec) - 203 dpi serial bar codes with narrow ele-
ments of 3 dots or greater.
6.0 ips (152 mm/sec) - default for parallel bar codes , max for label
peel and liner takeup.
8.0 ips (203 mm/sec).
SENSING METHODS
Edge: Die Cut, Black Mark, Aperture, Attacher Hole
Center: Die Cut, Black Mark, Attacher Hole
OPERATOR INTERFACE
Keypad: 5-button keypad control
Display: LCD Graphical Dot Matrix (128W x 64H dots). 2.54"
(64.5mm) Wide x 1.46" (37.0 mm) High
Display Backlight: White (Idle), Green (Active), Red (Error)
MEMORY
SDRAM: 64 MB
Flash: 64 MB
PRINTER EMULATION
Languages: MPCL, MLI.
COMMUNICATIONS
USB 2.0 Device Port: 1 port, B Receptacle.
USB 2.0 Host Port: 2 ports, A Receptacle.
RS-232C Serial Port: DB-9F, DTE pin out, 115.2K baud max
communications speed.
Wired Networking: 802.3u Ethernet, 10/100 Mbps, RJ-45 con-
nector.
Wireless Networking: Optional, 802.11 a/b/g/n dual band (2.4 GHz
& 5 GHz), WPA2, 802.11i compliant.
REAL TIME CLOCK
Real Time Clock: Standard
RFID ENCODER
Optional, EPCglobal UHF Class 1 Gen 2 / ISO 18000-63 (formerly
18000-6C). Supports worldwide UHF RFID frequency ranges.
RFID READER
Optional, Integrated post-encode-and-print reader module. Vali-
dates actual encoded data against requested data.
BAR CODE TYPES
1-Dimensional - UPCA +2/+5, UPCE +2/+5, EAN8 +2/+5, EAN13
+2/+5, EAN128 Interleaved 2 of 5, Extended Code 39, Codabar
(NW7), Code 128, Code 16K, Code 93, MSI, Postnet, Intelligent
Mail, GS1 Databar.
2-Dimensional - PDF417, MaxiCode, Data Matrix (ECC-200), Quick
Response (QR Code), Aztec.
STANDARD FONTS
Bitmap - Standard, Reduced, Bold, OCRA-like, CG Triumvirate,
and CG Triumvirate Bold TrueType ® - EFF Swiss Bold. Supports
downloaded double-byte TrueType and bitmap fonts, allowing for
international character sets.
FONT MAGNIFICATION
1x to 7x
4 to 250 pt. for scalable/ TrueType ® fonts
ENVIRONMENTAL
OPERATING TEMPERATURE
40° – 104° F (4° – 40°C) for Thermal Direct
- 40° – 95° F (4° – 35°C) for Thermal Transfer
STORAGE TEMPERATURE
15° – 120° F (-9° – 49°C)
RELATIVE HUMIDITY
5 – 90% Non-condensing
POWER SOURCE
90-264 VAC with auto select 50/60 Hz
POWER CONSUMPTION
62 Watts printing, 4 Watts (Sleep mode), Certified Energy Star
Compliant
WARRANTY
PRINTER
One (1) year parts and labor. Full written warranty statement
available on request.
PRINTHEAD
One (1) million inches or six (6) months, whichever occurs first.
SUPPLIES SPECIFICATIONS
SUPPLY TYPES
Tags and Adhesive Labels (Paper or Synthetic) in roll or fanfold
format. Perforated or continuous supply
SUPPLY WIDTH
0.75" – 4.25" (19.1 – 108.0 mm)
WIDTH WITH PEEL OPTION
0.75" – 4.25" (19.1 – 108.0 mm)
SUPPLY LENGTH (INDEXED)
0.32" to 17.5" (8 mm to 445 mm)
SUPPLY ROLL DIAMETER
8.0" OD (203 mm) on 3" Core (76mm)
TYPICAL ROLL LENGTH
5,905" (150 m)
7,874" (200m) with EcoCapacity+
RIBBON LENGTH
23,622" (600 Meters)
RIBBON CORE
1" (25.4mm) plastic
SUPPLY THICKNESS
4.5 – 13.5 mils (0.14 – 0.33 mm)
